IFP P-Series, the new Interactive Multimedia Monitors from HELGI

Advanced interactivity features for the new HELGI P-Series 65", 75" and 86" monitors

Ligra DS introduces a new line of HELGI medium/high-end multimedia interactive monitors to meet the ever-increasing market demands arising from recent collaboration needs in the corporate and university sectors.

This new line of IFP (Interactive Flat Panel) displays called 'P' includes three models, in sizes 65", 75" and 86" respectively: all feature UHD resolution (4K, 3840 x 2160 pixels) and Android 9.0 preinstalled.

Main features

  • Zero Gap Technology2 second-generation
  • 20-touch infrared touch screen
  • 3 mm thick anti-reflective tempered glass with high hardness
  • Integrated 2 x 20 W front-facing stereo speakers
  • Broad connectivity
  • USB Type C Full - Link 20 Gbps with 65 W charging
  • 4 x ARM Dual Core Cortex-A73 processors
  • 5 GB RAM, 32 GB ROM
  • Proprietary mini PC compatible slot (optional)
  • Wi-Fi and Bluetooth module included
  • Chimpa RDM Advance licence included for 1 year
  • Unlimited ScreenSharePro licence
  • Touch Display + software included and unlimited

The new models, which differ only in size, adopt a number of technical features typical of high-end products, starting with the ultra-thin metal frame design and ending with Zero Gap technology2 second generation, improved over its predecessor to ensure even sharper images, with increased contrast and reduced reflections.

As a reminder, Zero Gap technology consists of eliminating the layer of air between the protective touch screen and the monitor's LCD surface in order to reduce the gap between the point of contact and the point displayed on the screen. In HELGI P-Series monitors, the gap is non-existent at the centre of the panel, benefiting touch precision and naturalness. And speaking of touch precision, we are talking about 1 mm on the 90% in the area, with 20 infrared touch points and 10 writing points, which is possible both with gloves and any other solid object.

Finally, the absence of air between the two panels prevents condensation and the proliferation of mould and bacteria on the screen.

Hardware and connectivity

Hardware architecture involves the use of 4 x ARM Cortex-A73 Dual Core CPUs and a Mali G52 MC 2 GPU, with 5 GB RAM. Obviously, the whole thing is expandable with HELGI's external proprietary Mini PC (optional) to be inserted into the corresponding MT43 slot in order to turn the display itself into a real computer with Windows O.S. This Mini PC is available with Intel Core i3, i5 and i7 processors, 4/8 GB RAM and a 128 or 256 GB M.2 SSD drive.

Wide-range Wi-Fi and Bluetooth 4.0 (SI07) is included: this module also offers Dual Mode functionality, which allows simultaneous Wi-Fi connection and HotSpot creation. Other features include an ambient light sensor, EyeCare filter to reduce blue light and thus make viewing more comfortable, two 20 W speakers and a pair of passive pens supplied. Extensive connectivitywith 3 x HDMI inputs, 1 x VGA, 1 x USB Type-C Full-Link, 4 x USB 3.0, 1 x USB 2.0, an analogue input for audio from a PC (or any other multimedia source), a headphone output and an optical S/PDIF audio output. There are also RS232 and 2 x LAN RJ45 ports.

The presence of a USB Type C Full-Link port uses a 20 Gbps USB 3.2 connection. With a single cable, therefore, it will be possible to transfer 65 W for charging, video up to 4K, audio, computer touch signal and network connection between the monitor and compatible devices.

Comprehensive software equipment

On the software side, HELGI P series monitors are equipped with Chimpa RDM (Remote Display Management) Advance - advanced remote display management - and the free perpetual licence for ScreenShare Pro.

Chimpa RDM Advance allows you to manage, monitor, diagnose, and protect the devices with Android on board used within your organisation from data theft and computer intrusions. It only takes a few minutes to activate and its ease of use makes it suitable even for inexperienced users.

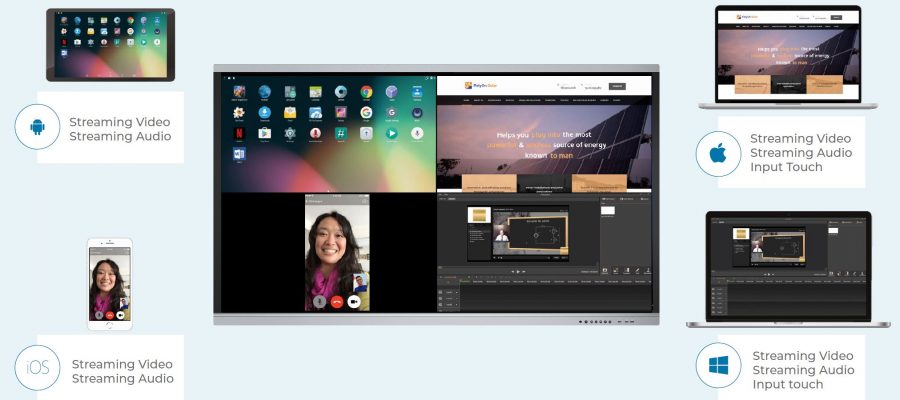

ScreenShare Pro allows two-way mirroring in split-screen mode for up to six simultaneously connected devices and is compatible with Windows, MacOS, Linux, iOS and Android. With ScreenShare Pro, everyone can stream their content instantly and without any special settings.

In addition to the bundled software, which also includes NotesPLUS and Capture, with HELGI you can expand the possibilities of using the Interactive Monitor thanks to some specific accessories such as trolleys and manual or motorised supports.

Proposals for integration of components

Ligra DS has formulated three different proposals to meet the needs of companies in the corporate sector, in order to make the monitor itself the hub of corporate collaboration: one dedicated to the Wireless Collaborationone in the huddle/conference room (Corporate Solution Standard) and one dedicated to meeting rooms, which compared to the standard solution includes an A/V soundbar (Corporate Solution Advanced) for larger rooms.

Customised solutions comprising various accessory packages are also available on request.

The P series models are designed specifically for the high-end business market. Their design features and all technical details represent a step forward compared to their predecessors. The precision touch response, ambient light sensor and components designed for maximum performance make these models the ideal solution for everyday use, in the office and company. All with the assurance of a three-year replacement guarantee.

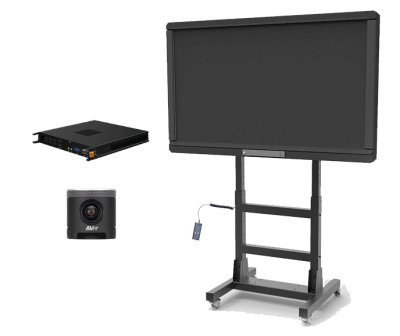

Corporate Solution Standard: includes HELGI P Series monitor, trolley, mini PC and webcam
