GS108Tv3
- € 113,85 + VAT
- Recommended End User Price
Description:

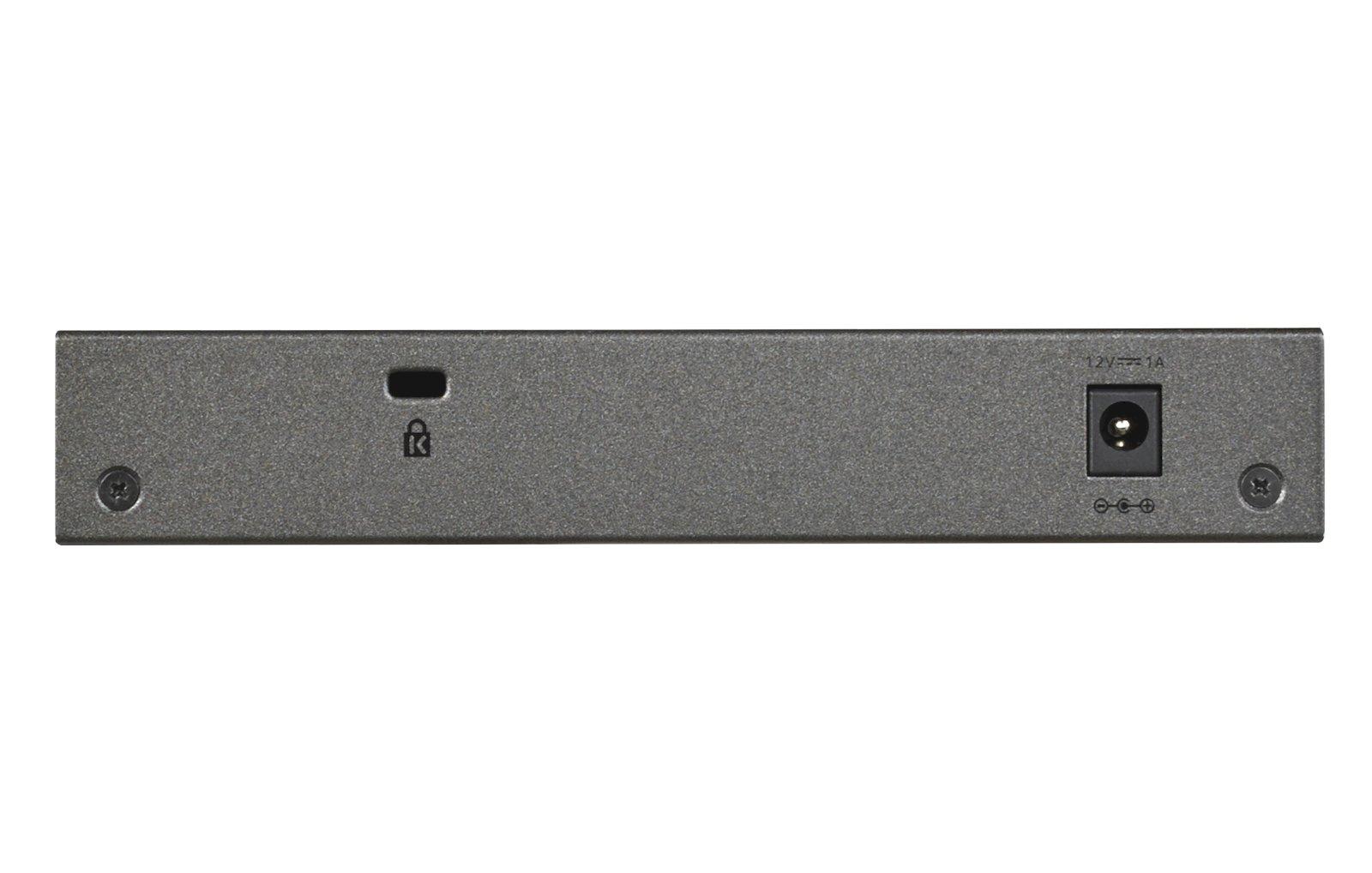

The NETGEAR GS108Tv3 8-Port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, supporting perfectly silent desktop operation or wall mounting. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and QoS for wireless converged networks and mobility. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing,IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS108Tv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Limited Lifetime Warranty and 24/7 support including lifetime chat.
- DATA SHEET
- DOCUMENTS
Overview
- Typology:
- Finished product
- Product category:
- Networking
- Family:
- Switch
- Product line:
- Smart basic switches
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- DC-in jack
Weight & dimensions
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 27 mm
- Weight
- 430 g
Packaging data
- Package width
- 226 mm
- Package depth
- 270 mm
- Package height
- 64 mm
- Package weight
- 780 g
- Package type
- Box
Power
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 1.25 A
- Power consumption (max)
- 5,5 W
- Power supply included
- Yes
- DC input voltage
- 54 V
Operational conditions
- Operating relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 18.66 BTU/h
- Non-operating altitude
- 0 - 3000 m
Packaging content
- Manual
- Yes
Design
- Product colour
- Grey
- LED indicators
- Activity, LAN, Link, PoE, Power, Speed
- Stackable
- No
Performance
- Processor frequency
- 500 MHz
- Internal memory
- 128 MB
- Flash memory
- 32 MB
- Mean time between failures (MTBF)
- 2388657 h
- Firmware upgradeable
- Yes
- Memory type
- RAM
Certificates
- Certification
- CE, FCC, VCCI Class B, C-Tick
Network
- Number of VLANs
- 64
- Networking standards
- IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-TX
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- MAC address auto-learning supported
- Yes
Logistics data
- Harmonised System (HS) code
- 85176990
- Master (outer) case width
- 214 mm
- Master (outer) case length
- 474 mm
- Master (outer) case height
- 312 mm
- Master (outer) case gross weight
- 5.49 kg
- Products per master (outer) case
- 6 pc(s)
Security
- Security algorithms
- 802.1x RADIUS
- MAC address filtering
- Yes
- Access Control List (ACL)
- Yes
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Access Control List (ACL) IPv6 entries
- 100
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
Data transmission
- Switching capacity
- 16 Gbit/s
- MAC address table
- 8000 entries
- Packet buffer memory
- 0.5 MB
- Jumbo frames support
- Yes
- Store-and-forward
- Yes
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 256
- IPv4 multicast entries
- 32
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Protocols
- Management protocols
- SNMP
- Switching protocols
- SNMP
- Data link protocols
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Supported network protocols
- HTTP, HTTPS
